Green Mower
Product Description

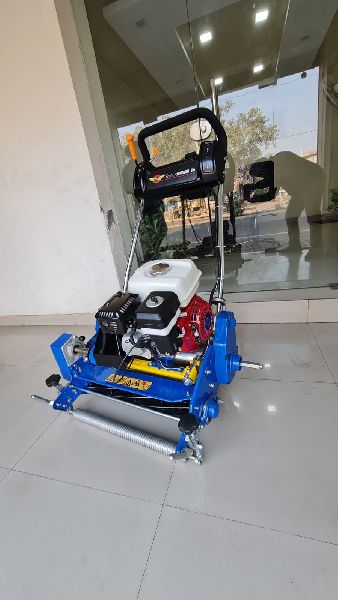

That’s why we have just the product you need! Our self-propelled design makes light work of the most sloping green, while the smooth rear roller helps you to get the perfect-looking finish. Hardened blades mean fewer chips that might spoil the even cut, while separate clutches on the rear roller and cylinder ensure maximum flexibility. This product is also suitable for cricket pitches and bowling greens.
| Model |
14.242GS |
1642HS |
| Engine |
14.5 HP, OHV Briggs & Stratton AVS |
16 HP, OHV Briggs & Stratton AVS |
| Charging System |
Wet Battery |
Wet Battery |
| Hood |
JD Loy, Uv Resistant |
JD Loy, Uv Resistant |
| Fuel Tank Capacity |
8.3 L |
8.3 L |
| Front Axle |
Cast Iron |
Cast Iron |
| Steering System |
Sector & Pinion |
Sector & Pinion |
| Turning Radius |
45 cm (18 in.) |
45 cm (18 in.) |
| Tyres (Front/Rear) |
15x6-6 / 20x8-8 |
15x6-6 / 20x8-8 |
| Transmission |
Dana 4360, 5-speed, in line shift |
Tuff Torq K46,2 pedal automatic |
| Travel Speeds |
- |
- |
| First Gear |
2.4 Km/h |
0-9.3 Km/h, infinite speed control |
| Secound Gear |
3.2 Km/h |
- |
| Third Gear |
5.0 Km/h |
- |
| Forth Gear |
6.4 Km/h |
- |
| Fifth Gear |
8.0 Km/h |
- |
| Reverse |
3.7 Km/h |
- |
| Mower Deck |
106 cm (42 in.), Mulch-Ready |
166 cm (42 in.), Mulch-Ready |
| Blades |
Two ll-Purpose |
Two ll-Purpose |
| Material |
12-Gauge Steel |
12-Gauge Steel |
| Mounting System |
Quik-Tatch, No Tools Needed |
Quick-Tatch, no tools needed |
| Cutting Height |
7 Position,2.5-10 cm(1-4 in.) |
7 Position, 2.5-10 cm (1-4 in.) |
| Net Weight |
199 kg |
208 Kg |
Specifications | Golf Green Machine - Model 20" | | Engine Type | Electric | Robin EY20 | Honda GX160 | | Power Output | 1100 W | 5 hp - 4-stroke | 5.5 hp - 4-stroke | | Blades | 9* | 9* | 9* | | Chassis Type | Steel | Steel | Steel | | Cutting Width | 510 mm | 510 mm | 510 mm | | Height Adjustment | 2 bolts
2 - 35 mm | 2 bolts
2 - 35 mm | 2 bolts
2 - 35 mm | | Chassis Thickness | 3.5 mm | 3.5 mm | 3.5 mm | | Wheels | 29.50 mm | 29.50 mm | 29.50 mm | | Grass Catcher Capacity | 40 l. | 40 l. | 40 l. | | Recommended Lawn Size | Large | Large | Large | | Golf Green Machine - Model 20" | | Power Output | 1500 W | 5 hp - 4-stroke | Honda GX160 | | Blades | 9* | 9* | 9* | | Chassis type | Steel | Steel | Steel | | Cutting width | 630 mm | 630 mm | 630 mm | | Height adjustment | 2 bolts
2 - 35 mm | 2 bolts
2 - 35 mm | 2 bolts
2 - 35 mm | | Chassis thickness | 3.5 mm | 3.5 mm | 3.5 mm | | wheels | 29.50 mm | 29.50 mm | 29.50 mm | | Grass catcher capacity | 50 l. | 50 l. | 50 l. | | Recommended lawn size | Extra large | Extra large | Extra large |
|

|
